ECO

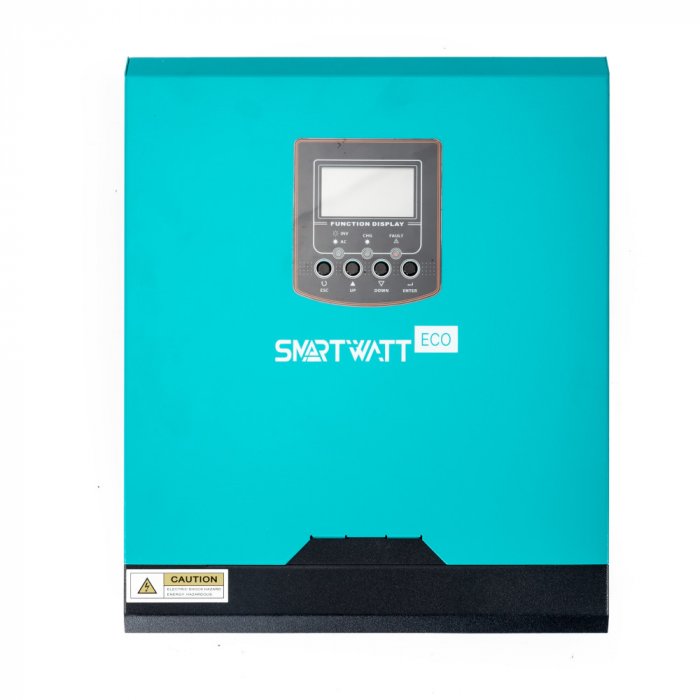

Multifunctional inverters of eco series for ASTERION solar plants. The built-in display allows to configure parameters and monitor the status of the station. These inverters have high overload capacity and easy installation.

ECO II 1.5-12M

Rated power: 1500VA/1500W

Nominal voltage, V: 12 V

Solar controller: MPPT

Maximum PV array voltage, V: 160 V

Max. charge current, A: 120 A

Parallel Capability: NO

Max. PV input power: 900 W

MPPT controllers: 1

Rated output power: 1,5

Dimensions: 225х320х88 mm

Weight: 6 kg

TI_ASTERION_SOL_ECOII_240514_EN.pdf

0.085 Mb

ECO II 3.5-24M

Rated power: 3500VA/3500W

Nominal voltage, V: 24 V

Solar controller: MPPT

Maximum PV array voltage, V: 500 V

Max. charge current, A: 100 A

Parallel Capability: NO

Max. PV input power: 4000 W

MPPT controllers: 1

Rated output power: 3,5

Dimensions: 225х320х88 mm

Weight: 6 kg

TI_ASTERION_SOL_ECOII_240514_EN.pdf

0.085 Mb

ECO II 5.5-48M

Rated power: 5500VA/5500W

Nominal voltage, V: 48 V

Solar controller: MPPT

Maximum PV array voltage, V: 500 V

Max. charge current, A: 100 A

Parallel Capability: NO

Max. PV input power: 5500 W

MPPT controllers: 1

Rated output power: 5,5

Dimensions: 433х310х125 mm

Weight: 7,6 kg

TI_ASTERION_SOL_ECOII_240514_EN.pdf

0.085 Mb

ECO II 6.2-48MT

Rated power: 6200VA/6200W

Nominal voltage, V: 48 V

Solar controller: MPPT

Maximum PV array voltage, V: 500 V

Max. charge current, A: 120 A

Parallel Capability: NO

Max. PV input power: 6500 W

MPPT controllers: 1

Rated output power: 6,2

Dimensions: 438х312х122 mm

Weight: 11 kg

TI_ASTERION_SOL_ECOII_240514_EN.pdf

0.085 Mb
