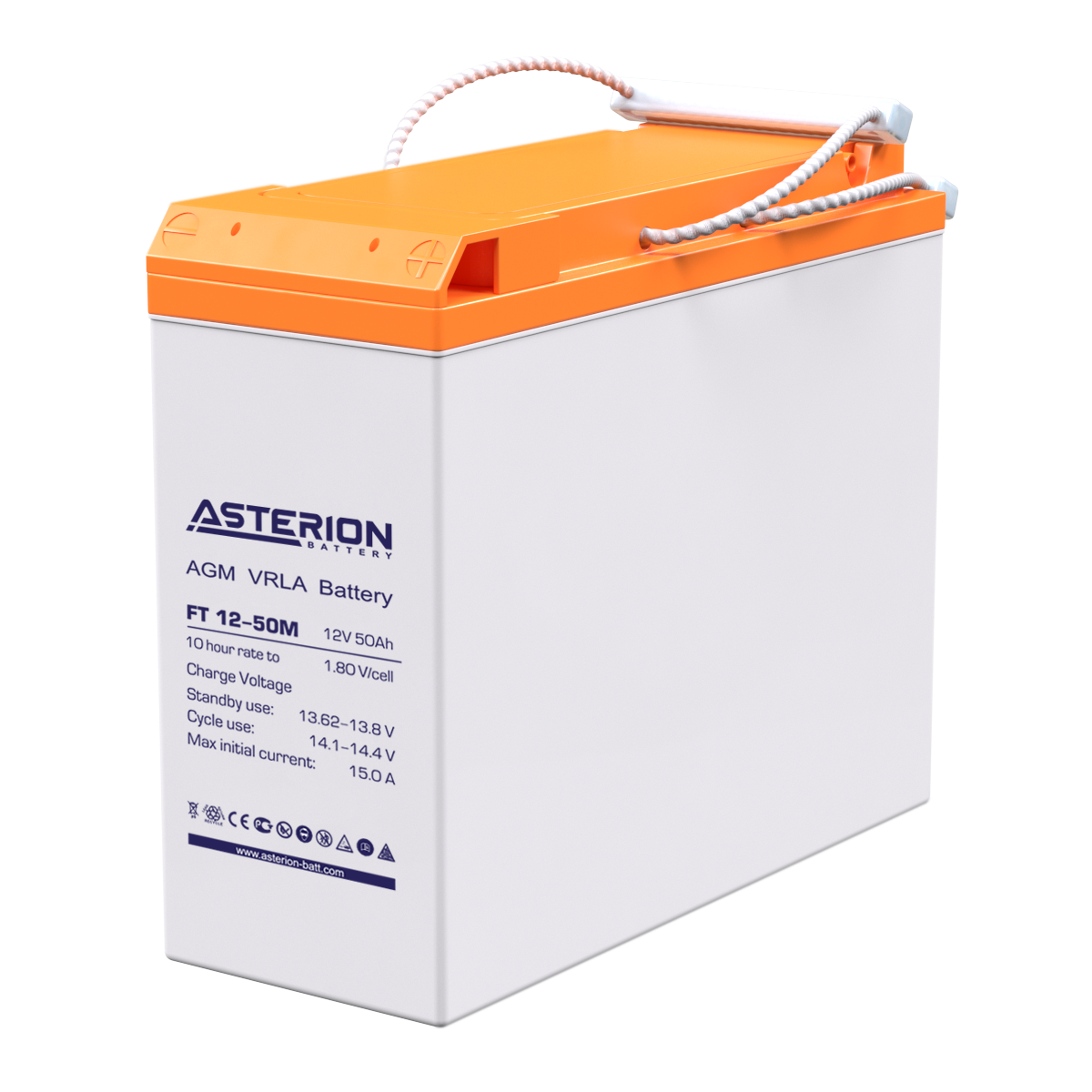

Maintenance-free front-terminal lead-acid batteries ASTERION FT-M series are manufactured using AGM technology with absorbed electrolyte.
Details
Ask a Question
Specifications
| Nominal voltage, V | 12 V |
| Nominal capacity, Ah | 50 Ah |
| Design life, years | 10-12 |
| Technology | AGM |
| Length, mm | 277 |
| Width, mm | 106 |
| Height,mm | 222 |
| Height without terminals, mm | 222 |
| Height max,mm | 229 |
| Weight, kg | 16,3 (±3%) |
Description
Maintenance-free front-terminal lead-acid batteries ASTERION FT-M series are manufactured using AGM technology with absorbed electrolyte. Using this technology, the batteries do not require topping up the distillate during the entire service life. The case design is optimized for installation in 19 "and 23" telecommunication cabinets and racks. The frontal arrangement of the terminals provides ease of installation and routine maintenance during operation. ASTERION FT-M series batteries are optimally suited for power supply systems of mobile operators base stations and other telecommunication infrastructure facilities.
Battery construction
| Element | Positive plate | Negative plate | Case | Lid | Valve | Terminal | Separator | Electrolyte |
|---|---|---|---|---|---|---|---|
| Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Acid |
Performance & characteristics:
- AGM technology allows to recombinate 99% of the generated gas;
- No restrictions on air transportation;
- Compliance with the UL requirements;
- Lead plates, alloyed by calcium, provide high energy density;
- Maintenance-free. Do not require distillate topping;
- Long service life;
- The battery case is made of flame-retardant ABS plastic.
Application:
- Uninterruptable power supply
- Backup power for cellular and radio relay stations
- Power supply for telecommunication equipment
- Communication Power Racks
- Telephone exchange
Operating temperature range
| Discharge | -20÷60 |
|---|---|
| Charge | -10÷60 |
| Storage | -20÷60 |
| Cycle mode (2,35÷2,4 V/cell): | |
| Maximum discharge current | 500 А |
| Temperature correction factor | 30 mV/°С |
| Standby mode (2,27÷2,3 V/cell): | |
| Temperature correction factor | 20 mV/°С |
Discharge Constant Current, A ( 25°С)
| V/cell | 30 min | 45 min | 1 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 55,9 | 42,7 | 34,1 | 19,3 | 14,1 | 11,0 | 9,15 | 6,08 | 5,03 |
| 1.65V | 53,9 | 41,4 | 33,5 | 19,0 | 13,9 | 10,9 | 9,07 | 6,08 | 5,02 |
| 1.70V | 51,7 | 40,2 | 32,8 | 18,6 | 13,7 | 10,8 | 9,02 |
6,05 |
5,01 |
| 1.75V | 49,7 | 38,9 | 32,1 | 18,3 | 13,4 | 10,6 | 8,93 |
6,04 |
5,00 |
| 1.80V | 47,5 | 37,6 | 31,4 | 17,9 | 13,2 | 10,5 | 8,90 |
6,01 |
5,00 |
Discharge Constant Power, W/cell ( 25°С)
| V/cell | 30 min | 45 min | 1 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h |
|---|---|---|---|---|---|---|---|---|---|
| 1.60V | 108 | 83,0 | 67,0 | 37,9 | 27,6 | 21,8 | 18,0 | 11,9 | 9,71 |
| 1.65V | 104 | 80,2 | 65,1 | 37,2 | 27,4 | 21,7 | 17,8 | 11,9 | 9,69 |
| 1.70V | 99,0 | 77,5 | 63,3 | 36,5 | 27,1 | 21,5 | 17,6 | 11,8 | 9,68 |
| 1.75V | 94,9 | 74,6 | 61,5 |
35,7 |
26,6 |
21,2 |
17,5 |
11,8 | 9,68 |
| 1.80V | 90,6 | 71,8 | 59,8 | 35,0 | 26,2 | 21,0 | 17,4 | 11,8 | 9,67 |
